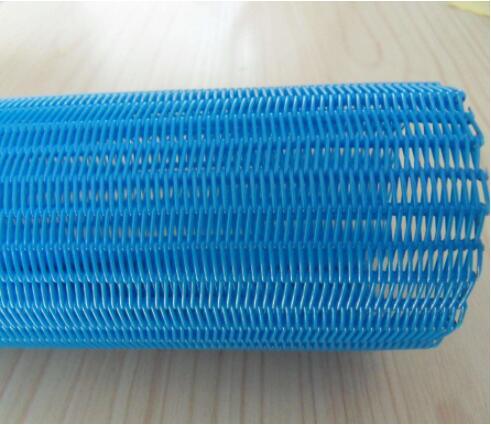

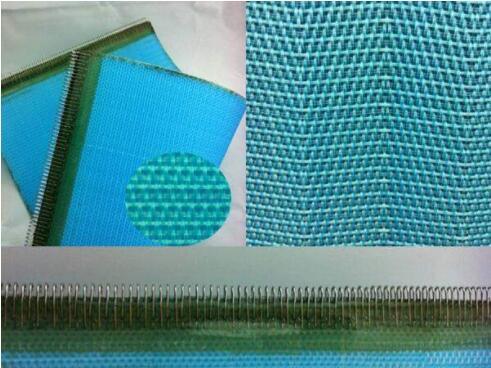

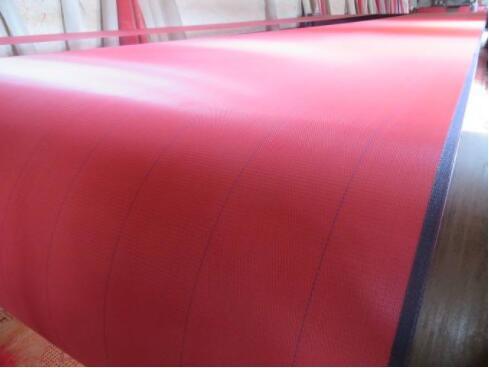

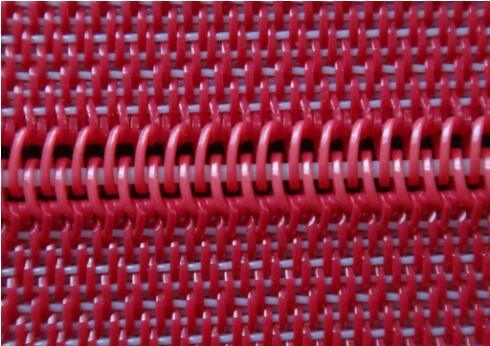

100% polyester press filter Cloth fabrics
Product Details of press filter cloth fabrics
- Press filter cloth fabrics are also called Press- Filter Fabrics
which is mainly used for sludge dehydration, pulp and juice
squeeze, mine smelting, mine tailings drying and other pressure
filtration industries.
- Press filter cloth fabrics have the characteristics of good water
permeability, air permeability and non-revealed sludge,
acid-resisting and alkali-resisting. Because of their designing
structure, the sludge can be peel off easily from the filter cake,
so the screen are easily cleaned and have a long working time.
Mainly matching with belt type filter press, vacuum rubber belt
filter and vacuum horizontal belt filter.
Technical data
Type | Specification of single loop
mm | Monofil diamater mm | Strength
N/cm | Thickness mm | Weight of mesh m2kg | Air permeability
m3/m2h |
Spiral loop monofil | Threading |
Super loop | 4.8X10 | 0.9 | 1.1 | 2300 | 3.03 | 1.64 | 21000 |
Large loop | 3.8X7.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.40 | 18000 |
Medium loop | 3.5X6.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.31 | 16000 |
Small loop | 3.2X5.2 | 0.5 | 0.8 | 1800 | 1.87 | 0.97 | 15000 |
Applications
1.Widely used in the production of cardboard with a net, kraft
paper, corrugated paper, paper of train tickets and single
whiteboard paper;
2.Instead of dry blanket, canvas of paper machine drying;
3.Also widely used in coal mining, food, medicine and other
industries of conveyor equipment.
Advantages
1.Has the acid and alkali resistance, wear resistance, high
temperature resistant, long service life
2.With smooth surface, the tensile strength, permeability is good.
3. According to user requirements in filling in the grid round wire
(2 to 5) (a) or black flat silk, adjust at porosity, meet the
process requirements.
4.Carbon fiber through internal fill to achieve antistatic effect,
with high temperature resistance, wear resistance, etc
5.Size length can be cut, and thus solve the problem of the
influence because of the size is not accurate to use.
6.Install easy to use, interface without imprint
Packaging & Shipping
1. wooden / polywood boxes + water proof plastic bag for sea
2. water proof plastic bag for air
3. as the customer requirements
Our Services
1. Samples: free samples with detail specification for you to
choose.
2. We will make the exact specifications as customer's
requirements.
3. We have ten engineers waiting to help you solve the problems
when using our mesh fabrics,belt
FAQ
1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best
suggestion and design the most suitable mesh/ wire/ fabrics/
screen/ belt.
3). send us the photos with size
4). send us a small piece sample.
2. Q: Waht is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if
the quantity is big, it will take about 20-30 working days.
4. Q: How long will the fabirc/wire/screen/belt/mesh be used?
A: The time is different differ the usage and factory.
5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
