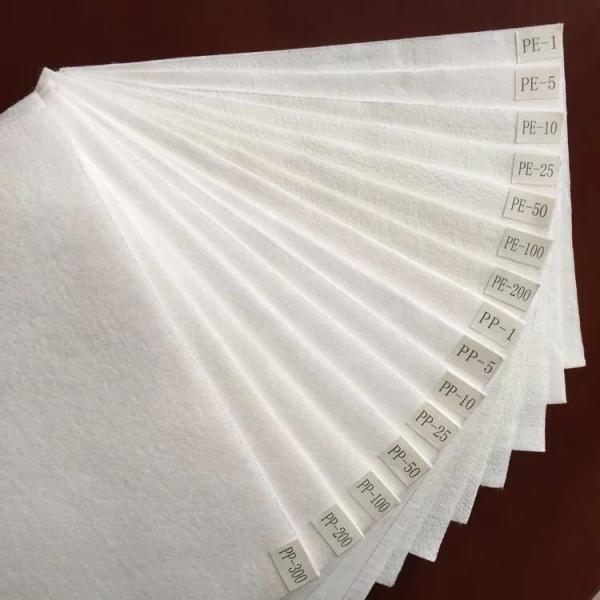

PP/PE 1 micron /5 micron/10 micron / 25 micron/50micron/ 75 miron
/100micron/150micron/200 micron filter cloth
Quick Detail:
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Parameter of PP Liquid filter bag
Specifications:
1. Material:PP non-wowen Felt.
2. 100 micron or as your request.
3. With straw string.
4. Use for powder or air filter .
5. size, shape, packing can be customized.
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be
customized |
PRODUCT CODE: |
Component | Elongation@50N/5cm |
Fibre | 100%PP | Longitudinal(%) | Transverse(%) |
Scrim | 100%PP | <3% | <3% |
Weight(g/m²) | 500 | Operating Temperatures |
Thickness(mm) | 2.0 | Continuous(°C) | Surge(°C) |
Density(g/cm3) | 0.25 | 130 | 150 |
Mean Air Permeability
(L/dm².min) | 150-250 | Max Dry Shrinkage in 90 minutes:(150°C)(%) | <1% |
Breaking Strength | Surface Treatment | Heat Setting, Singed,
Represent add stainless
steel fibers |
Longitudinal(N) | Transverse(N) |
>1000 | >1200 |
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Application fields:
1) The fume and smoke treatment and particle removing system in
metallurgy plant, alloy plant, steel works, moulding factories,
fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid
and solid in aluminum electro analysis, tin, zinc, cooper and other
rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and
liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in
chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials,
lime and plaster
6) Dust treatment, purification and collection in electronics,
mining, foodstuff processing, flour and timber processing.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust
filtration&spare parts in China.We have imported filter needle
felt production line ASSELIN from France and we can produce very
good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production
ability can achieved 20,000 square meters per day . We can produce
a large range of various filter fabric, such as polyester filter
fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter
fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high
technology to develop the first filter bag production line in
China. Which help most filter bag production factory save a lot of
human lab our cost but promote the work effection . The advanced
technology and simple operation way of automatic filter bag
production line has won a lot of customer's praise.
