    Customized Size Filter Bag Cage Galvanized Steel / Stainless Steel

    Ask Lasest Price
    Supply Ability : 10000PCS/Week
    Certification : ISO9001 SGS
    Brand Name : RIQI
    • Product Details
    • Company Profile

    Customized Size Filter Bag Cage Galvanized Steel / Stainless Steel

    Galvanized Steel / Stainless Steel Dust Filter Cage for Filter Bag


    Product Description

    Company Info.

    Customer Question & Answer

    Ask something for more details

    Basic Info.

    Transport Package
    Standard Export Package
    Specification
    customized size
    Trademark
    philis
    Origin
    China
    Production Capacity
    10000PCS/Week

    Product Description

    galvanized steel / stainless steel dust filter cage for filter bag

    Dust Collector introduction

    First of all:
    This type filter cage is suitable for flower plate hole with diameter of 133 mm.
    This type filter cage is suitable for filter bag with diameter 133 mm and length 2000 mm.
    The material of stainless steel filter cage is 304 stainless steel . Stainless steel filter cage has good heat resistance and anti corrosion. And its service life is several times or even ten times that of carbon steel. It is often used in special industries such as food processing factory, waste incineration, non-ferrous metal smelting and chemical production.
    SPECIFICATIONS FOR FILTER CAGE
    Product Name
    Model
    Material
    Color
    Body Size(mm)
    Shape
    Galvanized filter cage
    YT-07GJ1
    cold drawing
    siver grey
    φ120*1950,
    or customized
    Circle,ellipse, envelope shape, star, etc,customized
    Silicon filter cage
    YT-07GJ2
    carbon steel
    black
    Spraying plastic filter cage
    YT-07GJ3
    carbon steel
    black
    Stainless steel filter cage
    YT-07GJ4
    stainless steel
    original

    Main Features

    1. The longitudinal and anti-supporting rings of the skeleton are evenly distributed to prevent damage and deformation. The top is equipped with a cold stamping pipe, which is used to ensure the safety of the bag cage and the protection of the filter bag.

    2. Once the skeleton production line is formed, ensure straightness and distortion, smooth and without burr after welding, and have sufficient strength not to unsolder, without dissoldering, virtual soldering and leakage welding.

    3. The design structure is strong and reliable, and the service life is longer.

    4, accept custom, can provide the elliptical, envelope and fold shape, multi type, venturi tube, the protection under the short tube, discharge type, plug type, chuck type connection mode of skeleton dust removal, and can produce different specifications according to customer requirements of different surface treatment of different connection mode frame of dust.

    Product Advantage

    Round shape filter cage

    1. The circular structure is adopted, and the longitudinal reinforcement and the reverse supporting ring of the bag cage are evenly distributed.
    2. Sufficient strength and stiffness to prevent damage and deformation.
    3. The top is equipped with a cold stamping short tube to ensure the safety of the cage and the protection of the filter bag.

    Filter cage material

    1. Stainless steel is used to form a skeleton production line for one time
    2. Ensure straightness and distortion. Filter bag frame is smooth and burr free after welding.
    3.There is sufficient strength without soldering, no soldering, virtual welding and missing welding.

    Galvanizing technology

    1.Zinc layer is strong, wear-resistant and corrosion resistant.
    2.It avoids the corrosion of the skeleton surface and the adhesion of filter bags after a period of time.
    3.The bag is guaranteed to be smooth and the damage to the bag is reduced during the bag changing process.

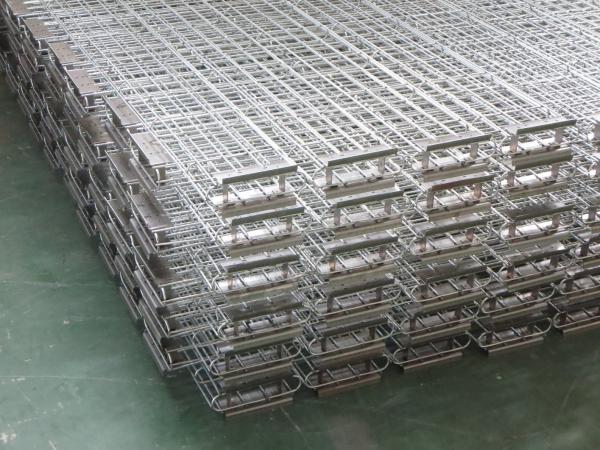

    Galvanized Steel / Stainless Steel Dust Filter Cage for Filter Bag
    Galvanized Steel / Stainless Steel Dust Filter Cage for Filter Bag

    FAQ

    Q1. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q2. Can you suggest me a suitable type?
    A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

    Q3. How about your delivery time?
    A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery


    Q6: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
