    alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh

    Ask Lasest Price
    Brand Name : RIQI
    Price : 80usd/m2 to 200 usd/m2
    Supply Ability : 500m2/day
    Delivery Time : 5-15days
    Certification : ISO9001 SGS
    • Product Details
    • Company Profile

    alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh

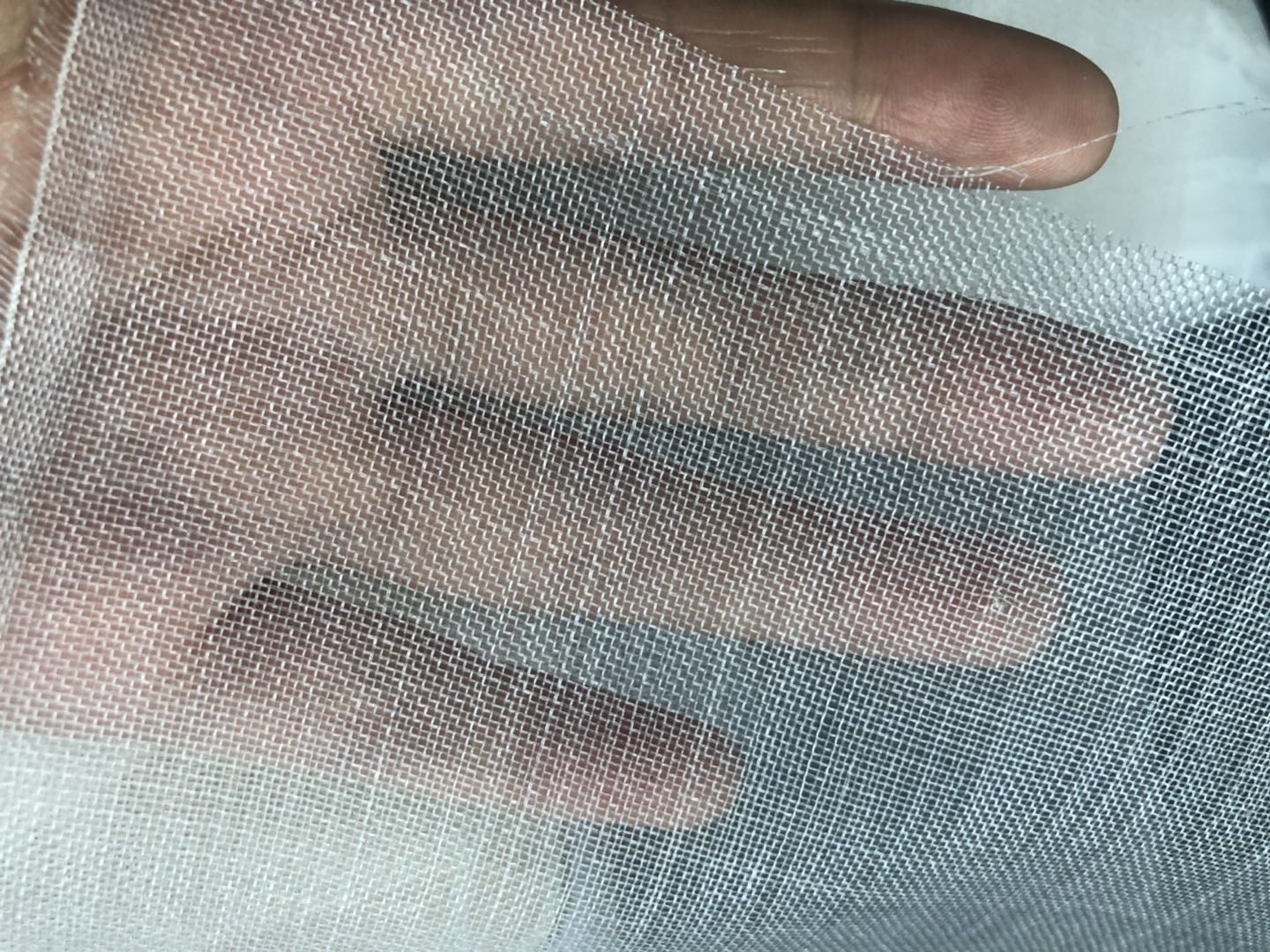

    Good acid and alkaline resistance PTFE Mesh Filter Fabric 300 Micron 200 micron 40 Mesh, 60mesh ,100mesh


    Temperature: -20~250°C (-4~+482°F)

    Pressure: -0.1~6.4Mpa (Full vacuum to 64kgf/cm2)

    Thermostability: working temperature can up to 250°C

    Weaving method: plain weaving, between 15mesh to 150mesh

    Industrial applications for ptfe mesh:
    Chemicals, resins and solvents
    Hydraulic oils
    Petroleum refining
    Power generation
    Pulp and paper industry
    Fuel lines


    1.Good capability and wide usage

    2.High temperature resistance

    3.High tensile strength

    4.OEM welcome


    ptfe mesh technical data :


    Product NameMesh numberWire diameterwidth

    Weight

    g/M

    MOQ

    PTFE mesh

    28 mesh /30 mesh (3028)0.2mm2.25m3302.25m*1m
    38 mesh/40 mesh (3838)0.2mm2.1m3362.1m*1m
    50-70 mesh (7050)0.16mm2m5802m*1m
    80 mesh (7560)0.1mm1.2m5321.2m*1m
    100 mesh (8680)0.08mm1m4251m*1m

    PTFE filter felt

    PTFE is more suitable for harsh conditions that require corrosion resistance and long service life of filtration material, fume handling of coal-burning boilers, garbage incinerators, carbon black production and TiO2 production. It can be used in the process of initial metallurgy and refining for some metals as well as chemical production.

    It widely used in steel, power, waste incineration flue gas filtration and other harsh environments.

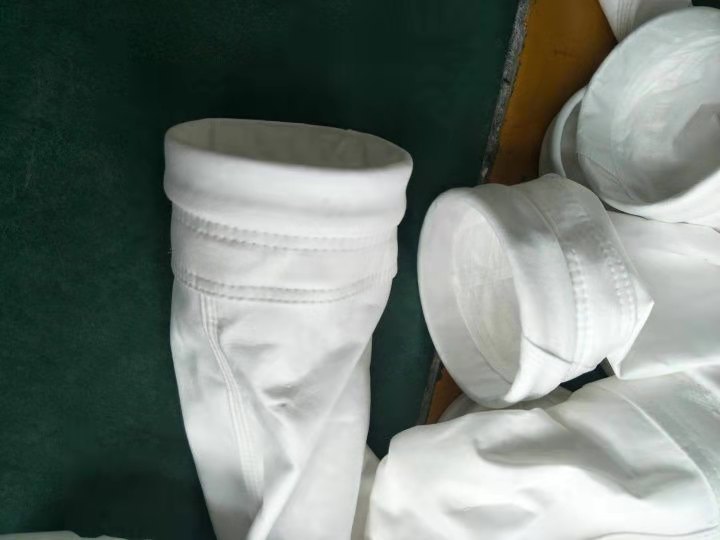

    Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.


    Technical Specifications
    ComponentShell FiberPTFE
    ScrimPTFE
    Weight750±5%g
    Thickness1.8±0.1mm
    Air Permeability120-150(L/dm2 .min)
    Tensile Strength N/5*20cmLength≥650
    Cross≥650
    TemperatureCountine260ºC
    Peaks300ºC
    FinishHeat Stabilization,Glaze,Singe,PTFE Impregnate
    Use ScopeUnit with ESP and bags or old unit retrofits,or unit requires long longivity and lower oxgen.ESP for the dust contents with high SO2 and NOX
    Application Field/Use ScopeSteel, Metallurgy, Cement, Power, Chemical,
    Dust Treatment, Building Wastage.
    Waste Incinerators,
    Chemical Corrosion
    Coal-fired boilers
    Solvent Collection
    Valuable Dust
    FeaturesAcid Resistant .Alkali Resistant .Custom-Made ..

    Application of nonwoven filter fabric for dust collection bag

    Asphalt Plant

    Lead Refinery

    Cement plant

    Steel plant

    Waste incineration

    Timber mill

    Power generation

    Treatment of nonwoven filter fabric for dust collection bag

    Normal Treatment: Singed,Calendered,Heat set

    Special Treatment: Anti-static, water&oil repellent,PTFE dipping/coating/membrane,etc

    Treatment of fiberglass: acid resistant, silicon, graphite, PTFE finish, PTFE membrane, tri-treatment(silicon, graphite, PTFE dipping)

    Main Features

    PTFE membrane needle felt is compounded by micro grain film and varied foundation in special techniques, with excellent chemistry stability and neat, smooth surface. It has the advantages of good air permeability, high temperature endurance and Condensation resistant. It is mainly used in chemistry industry,garbage burning, gas cleaning and industrial waste gas processing.

    Advantages of Our Compancy

    1) Two-high-speed non-weaving needle production lines, which produce all kinds of complex-fibre non-woven filter fabric and compound filter fabric
    2) All kinds of filter colth's finishing machine,such as filter surface heated-wollen which make the filter felt surface appearance more smooth.
    3) High temperature stabilization hot rolling machine and sentering stabilization ovens used for filter felt PTFE macerating, coating and oi and water repellant finishing.
    4) We have own laboratory of development and we have Patented dozens of technology Paten. A series of inspection equipment, make all products have to pass strict inspection before go out.
    5) Automatic production line, which sewn high quality filter bags.
