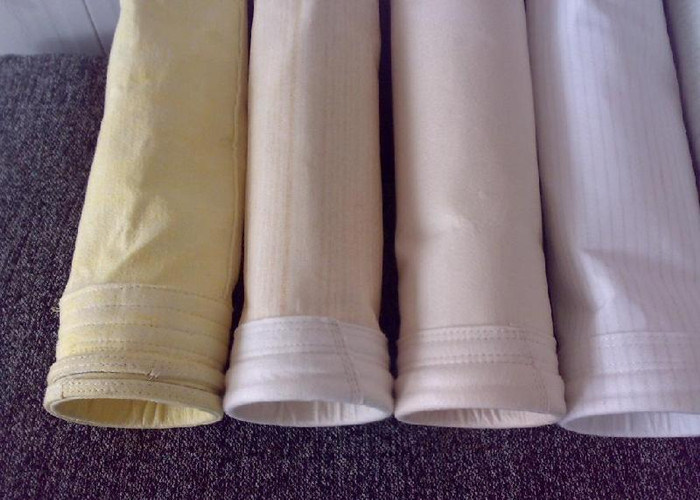

850g preservative pulse jet fms cylinder needle felt filter bag
Quick Detail:
dust filter cloth
1. Non-toxic and odorless
2. Long service life
3. Good stiffness, easy to pleat
4. High air permeability
5. High dust holding
Description:
Excellent resistant to hydrolysis, acids and alkalies.
good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Technical Specification:
Nonwovern dust filter bag | Continuous Temperature | Peak Temperature | Description | Resistance to Acids | Resistance to Alkalis | Resistance to Oxidation | PH Value |
| Polypropylene | 90ºC | 100ºC | PP | excellent | excellent | restricted | 1-14 |
| Acrylic | 125ºC | 140ºC | AC | good | good | good | 3-11 |
| Polyester | 130ºC | 150ºC | PE | restricted | moderate | good | 4-12 |
| Polyphenylen sulfide | 190ºC | 200ºC | PPS | excellent | excellent | moderate | 1-14 |
| Nomex | 204ºC | 250ºC | Nomex | good | excellent | good | 3-14 |
| Polysulfonamide | 250ºC | 300ºC | PSA | excellent | excellent | excellent | 3-14 |
| Polymide | 260ºC | 300ºC | P84 | good | moderate | good | 3-13 |
| Polytertrafluoroethylene | 250ºC | 280ºC | PTFE | excellent | excellent | excellent | 1-14 |
| Yadi | 150ºC | 160ºC | Yadi | excellent | excellent | excellent | 3-13 |
| Glassfiber | 260ºC | 300ºC | BQ | good | good | good | 3-11 |
FMS needle felt air filter bags for cement plant
FMS needled felt is made of glass fiber and p84 fiber.It has the
following advantages compared with the fiberglass filter bag,
1.good temperature resistance,and the working temperature can reach
to 260ºC,
2.the service life is significantly improved,
3.abrasion and breaking resistance,and the peeling strength is
abviously improved,
4.the filtration efficiency is improved,
FMS filter bag has a series suitable for different
temperature:150-200ºC,200-250ºC,250-300ºC.
FMS filter bag is widely used in steel,non-ferrous
metallurgy,chemical industry,carbon black,building
materials,electric power and so on.
Performance of filter medium |
| | Breaking tenacity N/5×20cm | | |
| | | |
| | | | |
| | | |
| | | | |
Notices:
1. Materials avaliable: polyester, polypropylene,Nomex , PPS, PTFE,
P84, Acrylic , glassfiber .
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Applications:
1. Air filters capture pollen, allergens, mold spores, and other
microscopic particles to reduce symptoms and help everyone breathe
easier.
2. medical filters made from nonwovens are key in any operating
room to keep out pathogens, bacteria or microbes that might
otherwise contaminate a sterile environment.
3. Oil filters are an important component in your car. The nonwoven
fabrics in the filter help remove contaminants from the engine oil,
hydraulic oil, trasmission oil and lubricating oil.
4. Automotive engine air intake filter helps automobile engines run
at the highest efficiency,optimum airflow helps ensure engines run
most effectively, which reduces fuel waste.
5. Filters for industrial filtration are used for dust produced in
processing industries such as grinding, separation, brushing,
transportation, drying, incinerating, etc.
FAQ
1. May I get samples?
Yes,
For OEM sample, usually takes about 5~15 days, it depends on design
and technique.
2. Can you make my logo on package?
Of course! You only need provide us your original logo file or
clear picture, so we can make it.
3. What is the payment method?
Bank transfer (T/T), Western Union, Money gram, L/C, paypal
4. How long production takes?
It is usually in 5~7 days after getting your payment and all the
details confirmed.
